M4860CL1-C - Hydronic Module, Chilled Water Coil

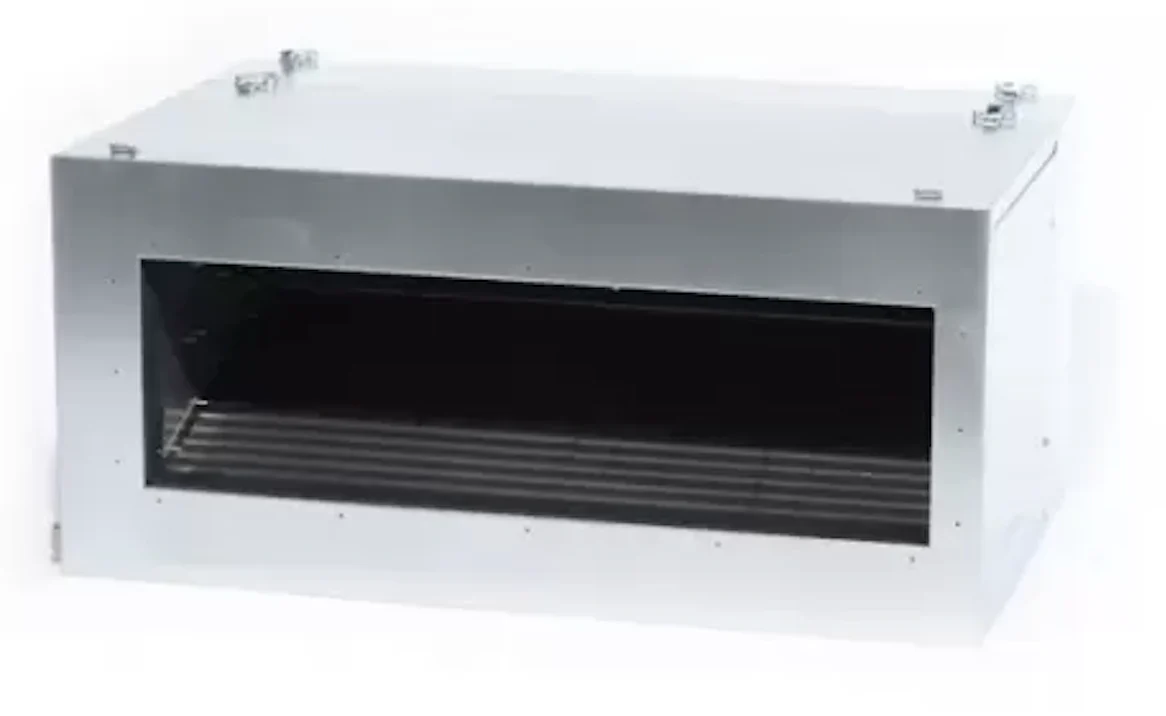

Product image 1

M4860CL1-C - Hydronic Module, Chilled Water Coil

M4860CL1-C - Hydronic Module, Chilled Water Coil

Ships in 42x18x26 inch pkg; 88 lbs

Unico M4860CL1-C Chilled Water Coil Module, M4860

Description:

  • This is 4 to 5 ton chilled water coil module with primary stainless steel drain pan.
  • The Unico System designed and built chilled water coil modules can be easily installed with the matching Unico System blower modules (M4860BL1)
  • The chilled water coil module can be used for zone cooling in a central chiller system or in combination with a residential chilled water unit
  • For large applications, multiple systems can be installed to cool more than one zone
  • Capacities range from 15,400 Btu/hr to 52,400 Btu/hr (4.5 to 15kW) for cooling and 19,200 Btu/hr – 127,900 Btu/hr (56 to 37.5 kW) for heating
  • For smaller applications use the M1218 unit
  • The chilled water coil module is compatible with ground source chillers for geothermal applications

Features:

  • Modular construction
  • Multiple configurations
  • painted options available
  • Enhanced Aluminum fins
  • Copper tubes
  • Stainless Steal drain pan
  • Includes: 1) EZ trap (shipped loose) , 2) Spacer module
$1,009.32

Original: $2,883.76

-65%
M4860CL1-C - Hydronic Module, Chilled Water Coil—

$2,883.76

$1,009.32

Product Information

Shipping & Returns

Description

Ships in 42x18x26 inch pkg; 88 lbs

Unico M4860CL1-C Chilled Water Coil Module, M4860

Description:

  • This is 4 to 5 ton chilled water coil module with primary stainless steel drain pan.
  • The Unico System designed and built chilled water coil modules can be easily installed with the matching Unico System blower modules (M4860BL1)
  • The chilled water coil module can be used for zone cooling in a central chiller system or in combination with a residential chilled water unit
  • For large applications, multiple systems can be installed to cool more than one zone
  • Capacities range from 15,400 Btu/hr to 52,400 Btu/hr (4.5 to 15kW) for cooling and 19,200 Btu/hr – 127,900 Btu/hr (56 to 37.5 kW) for heating
  • For smaller applications use the M1218 unit
  • The chilled water coil module is compatible with ground source chillers for geothermal applications

Features:

  • Modular construction
  • Multiple configurations
  • painted options available
  • Enhanced Aluminum fins
  • Copper tubes
  • Stainless Steal drain pan
  • Includes: 1) EZ trap (shipped loose) , 2) Spacer module
